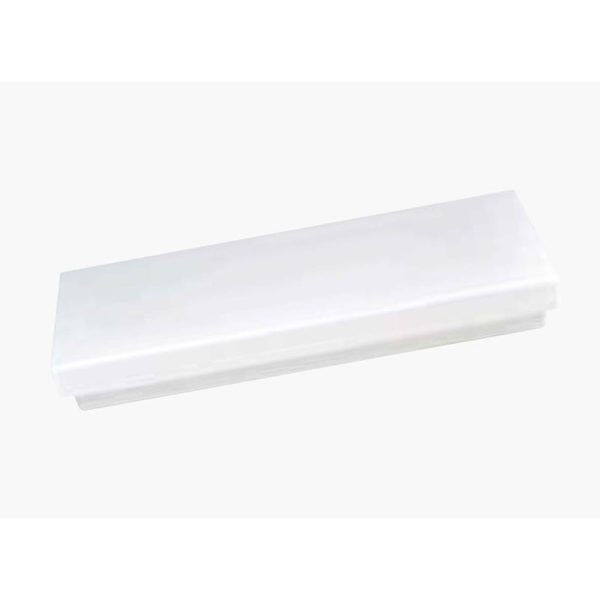

ZYP20LED

The lamp is suitable for illumination for dry compartments of all types of vessels, such as living cabin crew and passengers, rest room, dining room, cab, telegraph room and within the corridors and other places.





SKU: N/A Category: Tags: , ,
Clear

Description

The lamp is suitable for illumination for dry compartments of all types of vessels, such as living cabin crew and passengers, rest room, dining room, cab, telegraph room and within the corridors and other places.

Products feature:

  • The lamp has good quality cold-rolled plates by mold pressing, surface is powder coated after anti-acid white
  • The lampshade is injection molded from milky white poycarbonate with soft light
  • The LED-light source has a long service life, high intensity and low energy consumption
  • Equipped with 24V / 1.5W LED Emergency light in case of power failure. It has Emergency light holders with a red remark on the lampshade
  • The lampshade and the housing are attached by a valve spring and have a sturdy structure
  • Mounting type: recessed typem which can be fixed on the top of the tank or on the beam
  • Outer diameter from the cable is 11 ~ 13 mm

Adopt standard and products certification:

  • Conform to the Classification Rules for seagoing steel ships
  • Conform to GB7000.7 of Safety Requirement for flood light
  • Approved by China Classification Society (CCS)
TypeLZYP20-2ZYP20-2L
MaterialShell cold-rolled plate by mold pressing, powder coated after anti-acid white. Lampshade milky white polycarbonate plastic.
Light sourceLED TubeLED Module

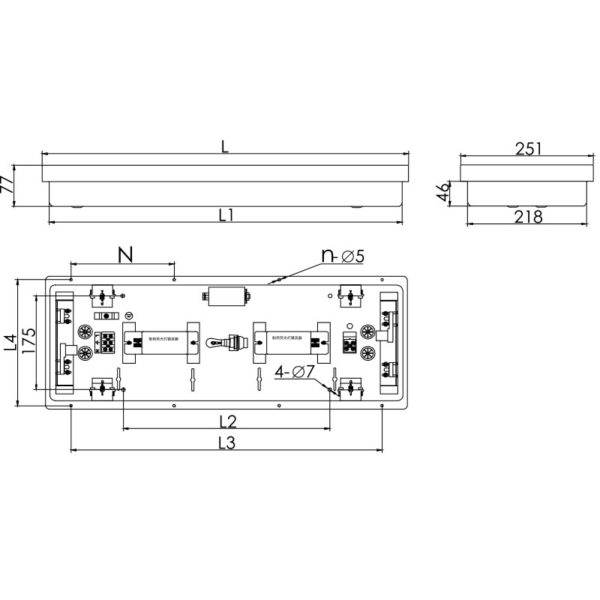

Product Size (mm)668 x 251 x 77668 x 251 x 77
Rated voltage (v)240V240V
Power (w)LED Tube2 x 12W
Frequency (hz)50/60Hz50/60Hz
Operating temperature (°C)-20 to 55-20 to 55
Protection classIP44IP44
Cable diameter (mm)11-1311-13
ColorWhiteWhite
Weight Gross / Net (kg)4.14.1
Adopt standardsIEC60598-1-2008IEC60598-1-2008

IP NumberFirst Digit - SOLIDSSecond Digit - LIQUIDS
IP00Not protected from solids.Not protected from liquids.
IP01Not protected from solids.Protected from condensation.
IP02Not protected from solids.Protected from water spray less than 15 degrees from vertical.
IP03Not protected from solids.Protected from water spray less than 60 degrees from vertical.
IP04Not protected from solids.Protected from water spray from any direction.
IP05Not protected from solids.Protected from low pressure water jets from any direction.
IP06Not protected from solids.Protected from high pressure water jets from any direction.
IP07Not protected from solids.Protected from immersion between 15 centimeters and 1 meter in depth.
IP08Not protected from solids.Protected from long term immersion up to a specified pressure.
IP10Protected from touch by hands greater than 50 millimeters.Not protected from liquids.
IP11Protected from touch by hands greater than 50 millimeters.Protected from condensation.
IP12Protected from touch by hands greater than 50 millimeters.Protected from water spray less than 15 degrees from vertical.
IP13Protected from touch by hands greater than 50 millimeters.Protected from water spray less than 60 degrees from vertical.
IP14Protected from touch by hands greater than 50 millimeters.Protected from water spray from any direction.
IP15Protected from touch by hands greater than 50 millimeters.Protected from low pressure water jets from any direction.
IP16Protected from touch by hands greater than 50 millimeters.Protected from high pressure water jets from any direction.
IP17Protected from touch by hands greater than 50 millimeters.Protected from immersion between 15 centimeters and 1 meter in depth.
IP18Protected from touch by hands greater than 50 millimeters.Protected from long term immersion up to a specified pressure.
IP20Protected from touch by fingers and objects greater than 12 millimeters.Not protected from liquids.
IP21Protected from touch by fingers and objects greater than 12 millimeters.Protected from condensation.
IP22Protected from touch by fingers and objects greater than 12 millimeters.Protected from water spray less than 15 degrees from vertical.
IP23Protected from touch by fingers and objects greater than 12 millimeters.Protected from water spray less than 60 degrees from vertical.
IP24Protected from touch by fingers and objects greater than 12 millimeters.Protected from water spray from any direction.
IP25Protected from touch by fingers and objects greater than 12 millimeters.Protected from low pressure water jets from any direction.
IP26Protected from touch by fingers and objects greater than 12 millimeters.Protected from high pressure water jets from any direction.
IP27Protected from touch by fingers and objects greater than 12 millimeters.Protected from immersion between 15 centimeters and 1 meter in depth.
IP28Protected from touch by fingers and objects greater than 12 millimeters.Protected from long term immersion up to a specified pressure.
IP30Protected from tools and wires greater than 2.5 millimeters.Not protected from liquids.
IP31Protected from tools and wires greater than 2.5 millimeters.Protected from condensation.
IP32Protected from tools and wires greater than 2.5 millimeters.Protected from water spray less than 15 degrees from vertical.
IP33Protected from tools and wires greater than 2.5 millimeters.Protected from water spray less than 60 degrees from vertical.
IP34Protected from tools and wires greater than 2.5 millimeters.Protected from water spray from any direction.
IP35Protected from tools and wires greater than 2.5 millimeters.Protected from low pressure water jets from any direction.
IP36Protected from tools and wires greater than 2.5 millimeters.Protected from high pressure water jets from any direction.
IP37Protected from tools and wires greater than 2.5 millimeters.Protected from immersion between 15 centimeters and 1 meter in depth.
IP38Protected from tools and wires greater than 2.5 millimeters.Protected from long term immersion up to a specified pressure.
IP40Protected from tools and small wires greater than 1 millimeter.Not protected from liquids.
IP41Protected from tools and small wires greater than 1 millimeter.Protected from condensation.
IP42Protected from tools and small wires greater than 1 millimeter.Protected from water spray less than 15 degrees from vertical.
IP43Protected from tools and small wires greater than 1 millimeter.Protected from water spray less than 60 degrees from vertical.
IP44Protected from tools and small wires greater than 1 millimeter.Protected from water spray from any direction.
IP45Protected from tools and small wires greater than 1 millimeter.Protected from low pressure water jets from any direction.
IP46Protected from tools and small wires greater than 1 millimeter.Protected from high pressure water jets from any direction.
IP47Protected from tools and small wires greater than 1 millimeter.Protected from immersion between 15 centimeters and 1 meter in depth.
IP48Protected from tools and small wires greater than 1 millimeter.Protected from long term immersion up to a specified pressure.
IP50Protected from limited dust ingress.Not protected from liquids.
IP51Protected from limited dust ingress.Protected from condensation.
IP52Protected from limited dust ingress.Protected from water spray less than 15 degrees from vertical.
IP53Protected from limited dust ingress.Protected from water spray less than 60 degrees from vertical.
IP54Protected from limited dust ingress.Protected from water spray from any direction.
IP55Protected from limited dust ingress.Protected from low pressure water jets from any direction.
IP56Protected from limited dust ingress.Protected from high pressure water jets from any direction.
IP57Protected from limited dust ingress.Protected from immersion between 15 centimeters and 1 meter in depth.
IP58Protected from limited dust ingress.Protected from long term immersion up to a specified pressure.
IP60Protected from total dust ingress.Not protected from liquids.
IP61Protected from total dust ingress.Protected from condensation.
IP62Protected from total dust ingress.Protected from water spray less than 15 degrees from vertical.
IP63Protected from total dust ingress.Protected from water spray less than 60 degrees from vertical.
IP64Protected from total dust ingress.Protected from water spray from any direction.
IP65Protected from total dust ingress.Protected from low pressure water jets from any direction.
IP66Protected from total dust ingress.Protected from high pressure water jets from any direction.
IP67Protected from total dust ingress.Protected from immersion between 15 centimeters and 1 meter in depth.
IP68Protected from total dust ingress.Protected from long term immersion up to a specified pressure.
IP69KProtected from total dust ingress.Protected from steam-jet cleaning.
